Key Features
Automation: The system is fully automatic, employing a PLC (Programmable Logic Controller) with HMI (Human-Machine Interface) control system and ultrasonic sensors to automatically detect the vehicle’s length and position, then select the appropriate wash cycle.

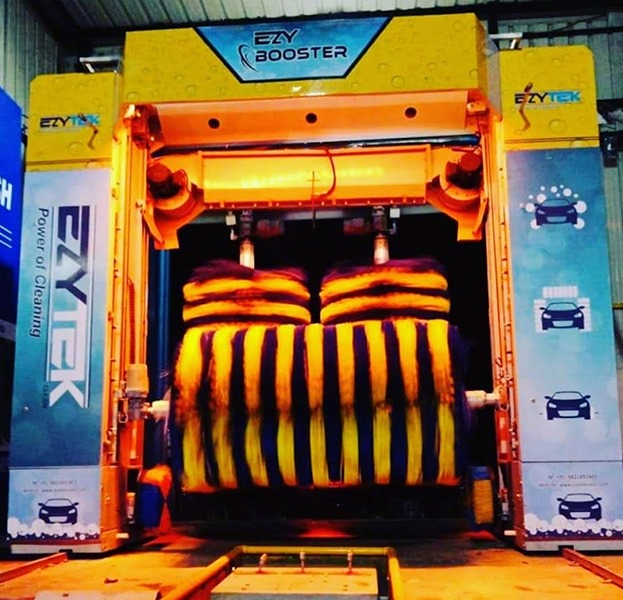

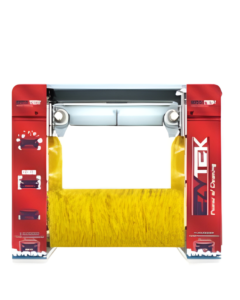

- Washing Mechanism: It uses soft foam or nylon brushes to prevent paint scratches while physically scrubbing the vehicle’s body. This is complemented by high-pressure water jets for effective dirt removal.

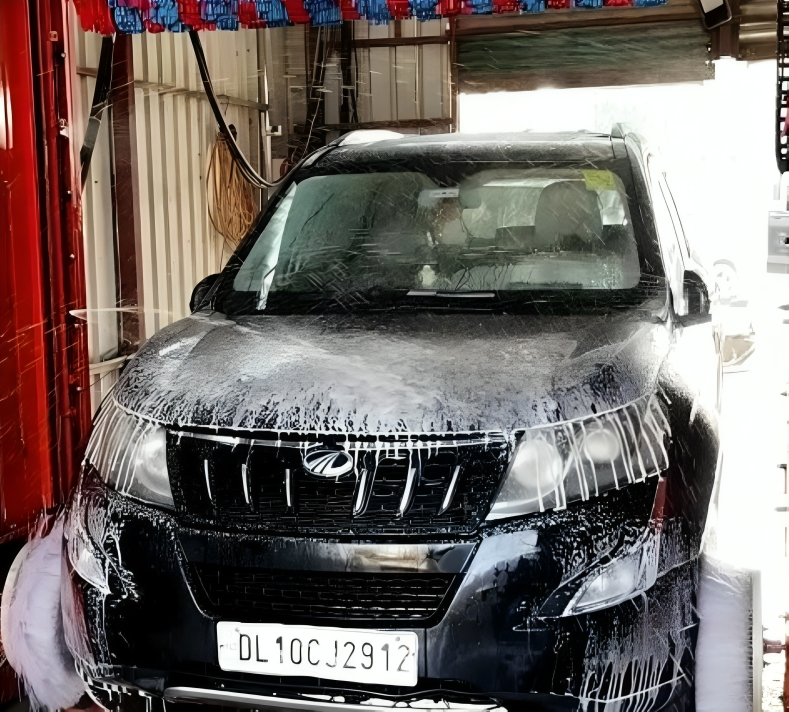

- Integrated Cycles: A complete wash cycle typically includes a pre-wash, foam application, brush wash, rinse, and wax, followed by a drying system.

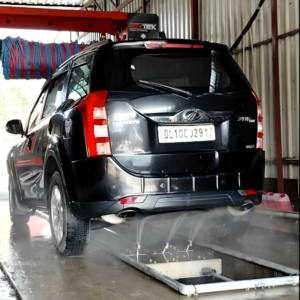

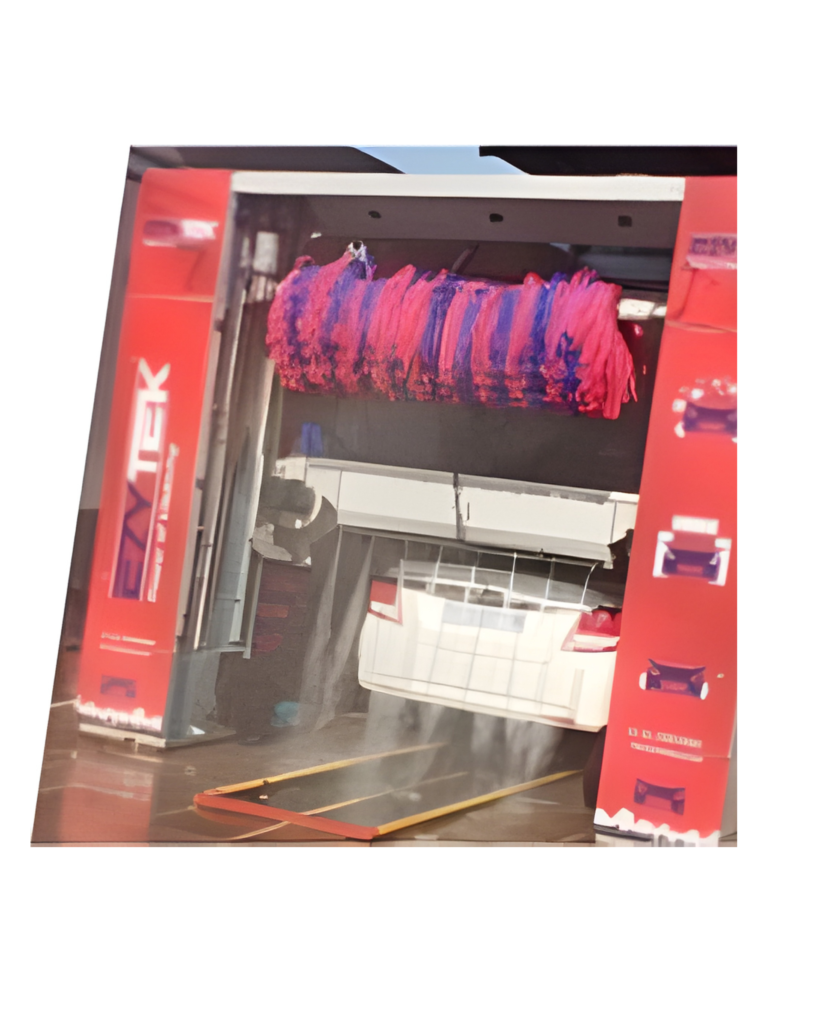

- Underbody Wash: Most models include a feature for undercarriage cleaning, using multiple oscillating nozzles on a robotic gantry to cover the entire underbody.
- Efficiency: The system is designed for high throughput, completing a full wash cycle in approximately 6 to 9 minutes. It consumes roughly 120–140 liters of water and 1–2 units of electricity per vehicle.
- Durability: The machine features a hot-dip galvanized and powder-coated steel frame for longevity and rust prevention, ensuring a service life of over 10 years.
- Safety & Control: It includes an intelligent avoidance system to prevent damage to different car types and a fault self-detection function.
Flexibility
Configuration of Programs
The flexible programming of the Ezytek Fully Automatic facilities adaptation to individual user needs. different was programs can be configured speeds can be parametrised, chemical products can be dosed.
PERFORMANCE.

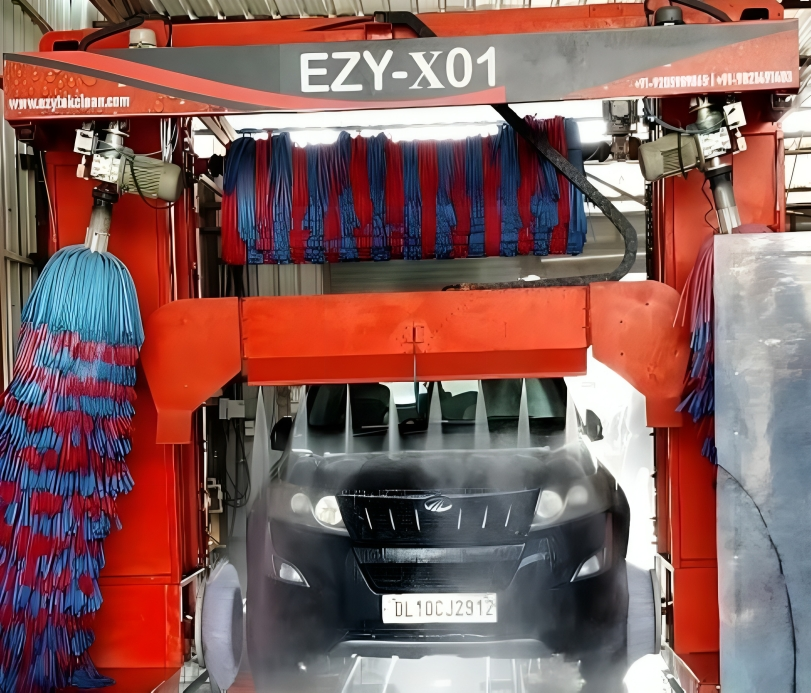

A number of high pressure pre-wash option with a common goal: removing stubborn dirt from the vehicle body.
TECHNOLOGY
PLC with standardized modules and a flexible configuration for optional extras. the use off the profibus communication protocol enhance communication and reduce machine wiring and connection.
MACHANISM

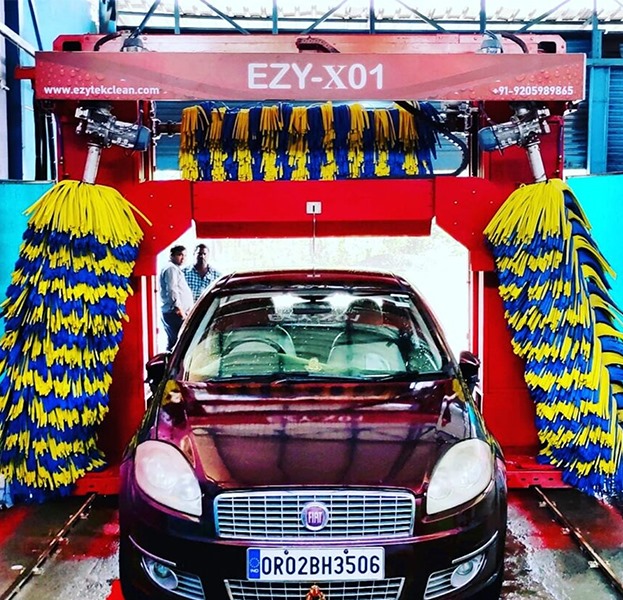

Accurate wash control thanks to 10 tilt of side brushes.
VERSATILITY
Solid and compact structure available in four different wash heights.
Technical Specification
| Main Structure | Hot Dip Galvanized |

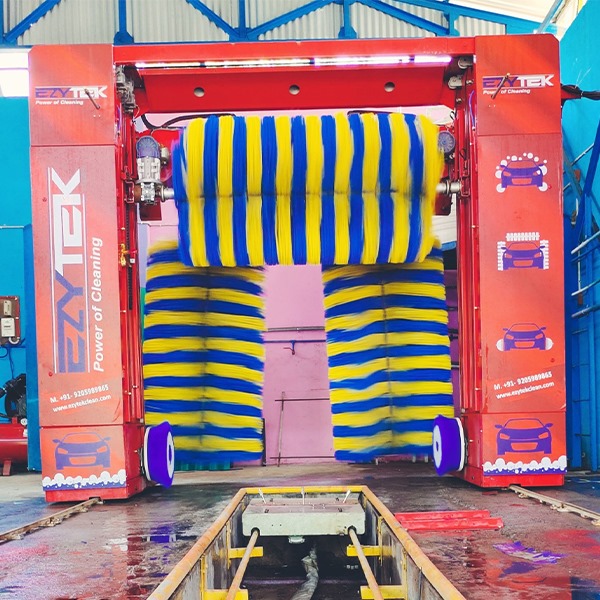

| Number of Brushes | 3 |
| Power Requirement | 18-kw |

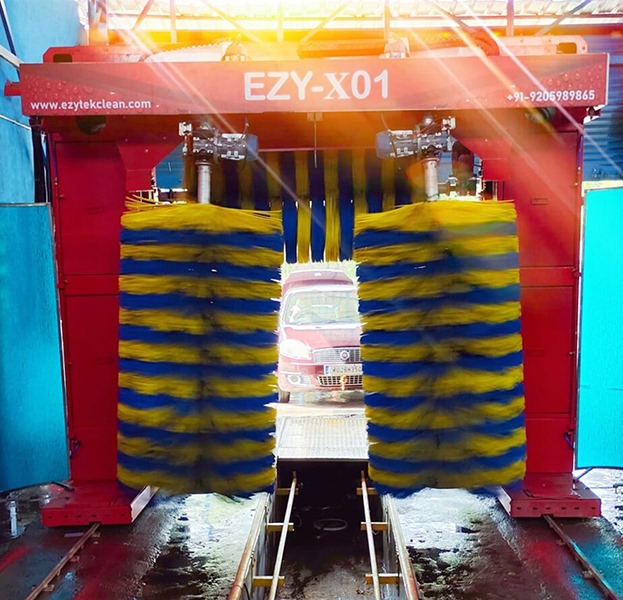

| Vertical Brushes | 2 |
| Horizontal Brushes | 1 |
| Brusher Pressure Sensing | yes |

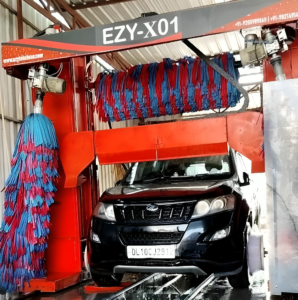

| Dryer | Automatic Profile Dryer |
| Under Washing | 9 Oscillating Nozzle |
| Power Consumption | 2 unit p/vehicle |
| High Pressure | 40 l/m triple ceramic plunger pump |
| Dimension LxWxH | 10 x 4 x 4 mtr |
| Washing Time Required | 8 to 9 mints |
