Key Features
Technical Specification
Touchless Technology: Employs high-pressure fixed and oscillating nozzles to displace dirt and grime.
Automatic Cycles: Features an “Auto Jet-Foam-Wax Cycle,” which automates the pre-wash, detergent application, and waxing process.

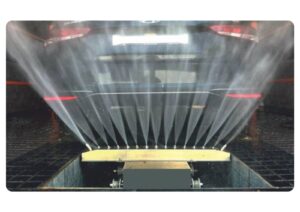

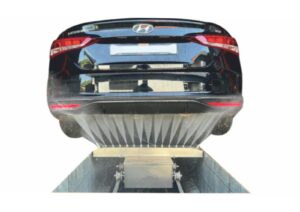

Underbody Washing: Equipped with a fixed-nozzle or robotic underbody washer to clean the chassis without manual lifting.
Smart Control: Uses PLC (Programmable Logic Controller) and HMI (Human Machine Interface) for automated vehicle detection and cycle selection.
Efficiency: Designed to complete a full wash cycle in approximately 6 to 8 minutes.
EZYTEK CLEAN markets the STORM Wash as a “startup business” solution requiring minimal labor and investment for high throughput.
| Machine Type | Overhead carriage dual swing arm type |
| Required Space | 6700 x 4250 x 3700 mm |
| Overall Dimensions | 5500 x 3950 x 3080 mm |
| Maximum Washable Dimensions Of Car | 4750 x 1900 x 1900 mm |
| Opreating System (water) pressure ,bar | 24 bar |
| Water Consumption per car, litres | 125 Litres |
| Cycle Time per car , min (excluding wheel arch washing & drying ) | 3.5 Min |
| Input Supply | 3 ph , 415V , 50Hz |
| Total Connected Load , kw | 9 Hp |
| Power consumption per car , kwh | 0.6 Units |
Gallery
Video
Work Scope for Both EZYTEK & Buyer (Automatic Car Washing Machine)
The work scope for an automatic car washing machine transaction involves distinct responsibilities for both the EZYTEK & buyer, extending from the initial purchase through installation, operation, and maintenance.
EZYTEK’s Work Scope
EZYTEK’s primary role is to deliver the equipment as specified in the contract and provide essential support services.
• Equipment Delivery: EZYTEK ensure the safe transport and delivery of all machine components to the buyer’s specified location.
• Installation & Setup: Typically, EZYTEK handles the professional installation, assembly, and initial configuration of the machine on the buyer’s prepared site.
• Testing and Calibration: EZYTEK conduct comprehensive testing and calibration of all systems (water pressure, chemical dispensing, safety mechanisms, etc.) to ensure the machine is fully operational and safe for use.
• Training: EZYTEK provide in-house/on-site training for the buyer’s staff on machine operation, basic daily maintenance, troubleshooting, and safety protocols.
• Documentation: EZYTEK supply all necessary manuals, including operation guides, maintenance schedules, and warranty information.
• Warranty & After-Sales Support: EZYTEK offer a specified warranty and provide accessible technical support, spare parts, and repair services as per the sales agreement.
• Compliance: EZYTEK ensure the equipment meets all relevant industry and safety standards before handover.
Buyer’s Work Scope
The buyer’s responsibilities centre on preparing the site, accepting the goods, making timely payments, and managing the ongoing operation and maintenance of the equipment.
• Site Preparation: Prepare the physical location with necessary infrastructure, including appropriate water supply (potentially with recycling filters), electrical connections, and proper drainage, before installation begins.
• Payment: Adhere strictly to the agreed-upon payment terms and schedule outlined in the purchase contract.
• Acceptance of Delivery: Accept the goods within a reasonable time and inspect them upon delivery to ensure they conform to the contract specifications.
• Operational Management: Manage the daily operation of the machine, including selecting appropriate wash cycles and ensuring a smooth customer experience.
• Routine Maintenance: Implement and perform daily and weekly maintenance tasks, such as inspecting nozzles, cleaning filters, checking chemical levels, and lubricating moving parts.
• Safety Compliance: Enforce all safety procedures, including the use of personal protective equipment and chemical handling guidelines, to prevent accidents.
• Professional Servicing: Arrange for periodic professional servicing and inspections as recommended by the manufacturer to ensure longevity and prevent costly breakdowns.
• Consumables Management: Ensure a steady supply of necessary operational consumables like approved foam, waxes, and other cleaning agents.
