Key Technical Specifications
The system is built for resource-efficiency and high industrial performance:
- Nozzle Pressure: 150 bar high-pressure delivery.
- Power Requirement: 11 kW to 12 kW operating capacity.
- Water Consumption: 120 to 140 liters per vehicle.
- Wheel Wash: Fully integrated automated system included.
Core Structural & Functional Features

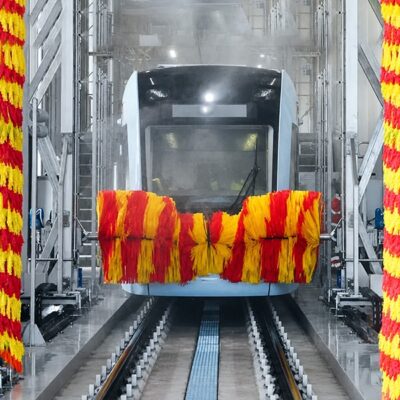

The automated plant is designed to handle mass-transit fleet wash requirements through specific architectural mechanisms:
- Intelligent 3-Brush System: Employs one horizontal brush and two vertical brushes to scrub the outer body. It uses soft foam or nylon textures to prevent paint scratches.
- Windscreen and Mirror Protection: Integrated smart sensors precisely map the front profile. It washes windshields safely without applying damaging pressure to extended side mirrors.
- Safety Lock Mechanism: Features a dedicated mechanical safety lock to prevent brush fall if a drive belt breaks. Active sensors continuously monitor and self-detect belt loosening or cuts.
